UAV system components take flight thanks to 3D printing

If you have a chance to go to the Paris Air Show next week (June 17-23), 3D printing juggernaut Stratasys will be there along with a French company called Survey Copter to promote prototype and short-run parts-making using 3D printers.

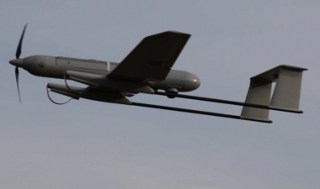

Survey Copter is using Stratasys 3D printing technology to produce components for mini unmanned aerial vehicle (UAV) systems, also known as drones.

Survey Copter, a subsidiary of the European Aeronautic Defence and Space Company N.V. (EADS), specializes in the design, production, and integration of complete remote systems for surveillance photography and video service applications for UAVs and other airborne craft, as well as for sea and overland vehicles.

Having previously outsourced its prototyping requirements, Survey Copter turned to Stratasys for an in-house solution that could reduce costs and ensure greater efficiency and autonomy, granting the company the means to rapidly produce very small quantities within 24 hr. Via Stratasys' French distributor, CADvision, Survey Copter subsequently installed two 3D printing solutions: a Stratasys Dimension Elite 3D Printer and Stratasys Fortus 400mc 3D Production System, which offers nine production-grade engineering thermoplastics using Stratasys' patented Fused Deposition Modeling (FDM) technology.

"Effectively meeting our 3D printing needs can only be achieved via machines that are capable of producing quality parts with high reliability," says Jean Marc Masenelli, managing director, Survey Copter. "Stratasys' reputation for delivering 3D printers that meet these criteria head-on made them the logical company to partner with."

Spearheading Survey Copter's prototyping and short-run manufacturing activities, the Stratasys Fortus 400mc and Dimension Elite 3D Printers are deployed in the production of component parts for the company's mini UAV systems, including both helicopter and fixed-wing variants weighing up to 30 kg and 10 kg respectively. Ranging from a few millimeters up to parts measuring 40 cm x 10 cm, these components comprise mechanical structures for optical turrets, structural elements of aircraft, battery compartment housings, supporting structures, as well as scale models.

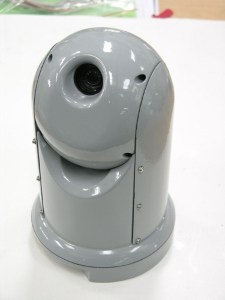

A turret-type camera housing is one of the many component parts printed on a Stratasys 3D printer for Survey Copter's mini-UAVs.





High-performance materials engineered for aerospace
For Masenelli, the ability to use different materials according to specific application needs offers key advantages for producing durable 3D-printed parts. Such materials include FDM thermoplastics, polycarbonate, ABS, and high-performance ULTEM 9085, which boasts superior strength and lightweight properties, as well as other desirable characteristics including FST (flame, smoke, and toxicity) rating. This safety standard, particularly valued within the aerospace and transportation industries, ensures a material won't promote a fire, release harmful smoke, or emit toxic fumes.

"That we are able to print production-grade materials such as high-performance FDM thermoplastics like ULTEM, which is qualified for aerospace applications, is a definite plus for our operations," says Masenelli.

"The Stratasys 3D Printer can produce parts with complex shapes -- for us, a highly sought-after requirement and a principle differentiator that sets Stratasys' proposition apart from that of other providers," Masenelli adds. "This specific capability enables us to produce parts of wide-ranging dimensions and hollow forms, as well as full honeycomb structures."

Featuring two material bays for maximum uninterrupted production, the Stratasys Fortus 400mc 3D Production System produces accurate, durable, repeatable 3D parts with excellent throughput. It is available in two configurations: the basic system, which builds parts as large as 355 x 254 x 254 mm, and an optionally upgraded system, which builds parts as large as 406 x 355 x 406 mm. With four layer thicknesses to choose from, users can fine-tune their desired balance between FDM's finest possible feature detail and the fastest build.

The Stratasys Dimension Elite 3D Printer features the finest resolution of any Stratasys Design Series Performance 3D Printers and produces nine colors of real ABSplus thermoplastic. When the finest dimension resolution of 0.178 mm is not required, the Dimension Elite allows users to accelerate printing with a layer thickness of 0.33 mm.

Source: Stratasys

Published June 2013
